Versatility
Mantis Pro is a durable lighting tower with a hydraulic mast and a 150-liter fuel tank for extended use. Ideal for construction projects and outdoor events, it offers consistent performance with minimal downtime. The road-tow trailer makes it easy to transport.
Running time
LOW
HIGH
Lighting area
LOW
HIGH
Shipment efficiency
LOW
HIGH
Cost saving
LOW
HIGH
Lumen
135.000 lm
Lighting area
7000 sqm
Acoustic emissions
61 dB @7m
Tank
150 L
Runtime
272 hours
Control Unit
Comap AMF25
Alternator
Linz Alumen 3,5 kVA
Engine emissions
Stage V
Engine
Yanmar 2TNV70
.png)

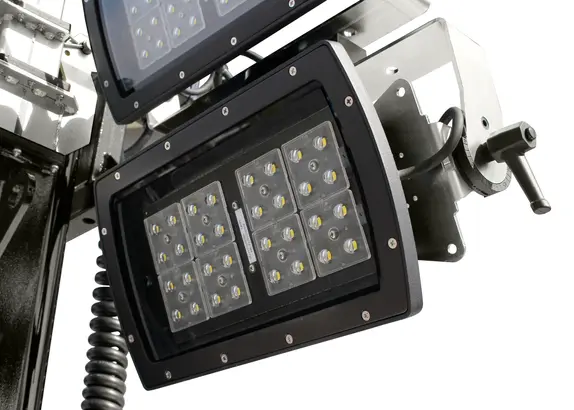

LED flooding

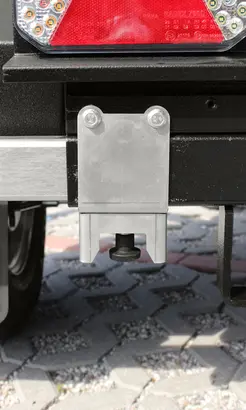

Stabilizers
PRODUCT
Specifications
4 stabilizers + jockey wheel
IP67-rated high-strength die-cast aluminum body with a life span of 85,000 hours
Hydraulic mast
Yanmar Engine

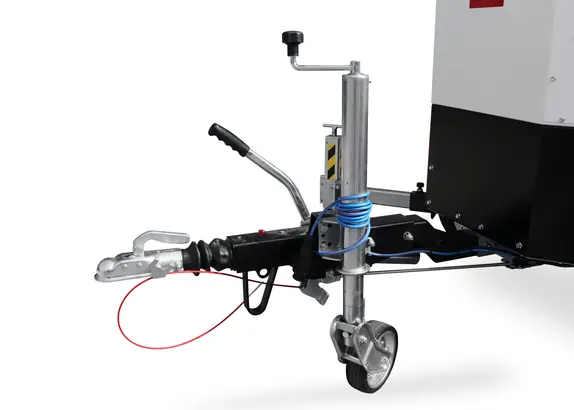

Trailer Road-tow
Galvanized mast with hydraulic lifting system with a maximum height of 7 m.
Engine: Yanmar 2TNV70
Trailer approved for road circulation in the European Union and outsid
Tailor made
Our lighting towers can be customized: you can customize a detail, but also change the design (upon consultation of our technicians).
Between the different customizations available, it is possible to paint the lighting tower according to your Company's RAL color, to brand it with your graphics or even ask to design a whole new one! Different aspects of our light towers can be completely customized: find out which ones!
Applications
AND SECTORS
LIGHTING
Performance
Type
Lumen
Nr. Floodlight
Illuminated area
LED light 6x160W
LED
160 W (each)
6
7000 sqm
TECHNICAL
Data
Technical specs
Frequency
50 Hz
Voltage
230 V
Acoustic emissions
61 dB @7m
Operating temperature
-30/+50
Control Unit
ComAp AMF25
Auxiliary power supply
1.5 kVA

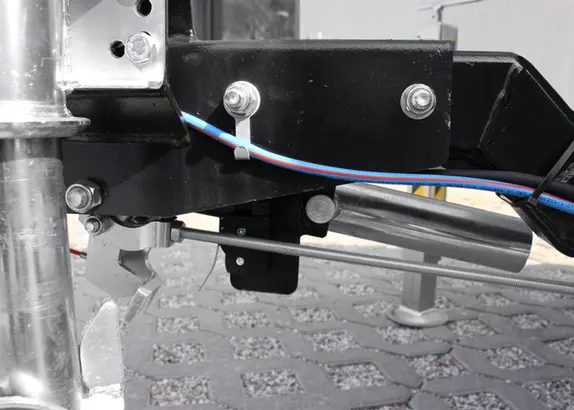

Galvanized mast
Height
7 m

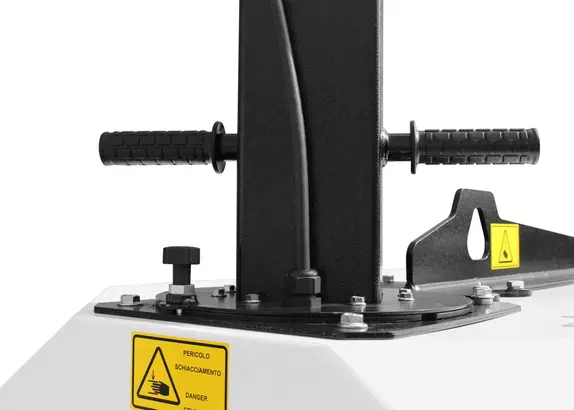

Rotation
350°
Lifting system
Hydraulic
Wind speed resistance
110 km/h
Engine
Model
Yanmar 2TNV70 / Kohler KDW702
Speed
1500 rpm

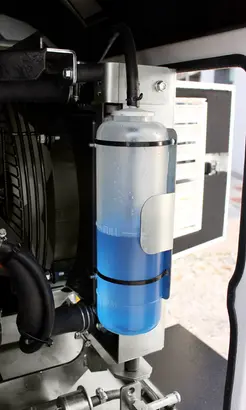

Refrigerant
Liquid
Emissions
Stage V
Cylinders
2

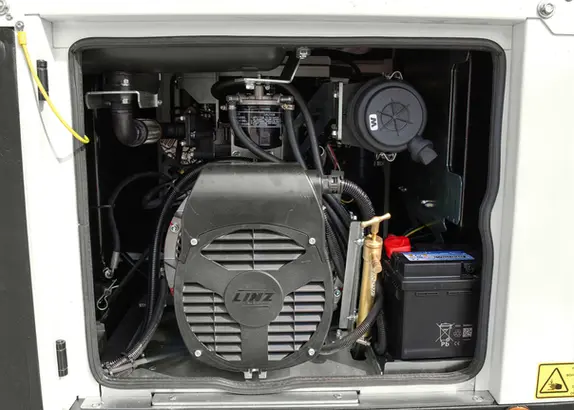

Alternator
Model
Linz Alumen
Power output
3.5 kVA
Trailer and canopy
Collection tank base
110%
Stabilizers
4 + (1 jockey wheel)
Tire size
185/70/R13
Consumption
Consumption
0.55 L/h
Tank
150 L
Fuel
Diesel
Autonomy
272 hours
TRANSPORT
Specifications
13.5m
14
12m
14
The Mantis light tower is one of the most compact solutions in our range. Thanks to its innovative design, up to 14 units can be loaded, both on trucks and in 40-foot containers, optimizing transport costs and reducing shipping time.
Each tower is carefully packed and securely loaded, ensuring quick unloading and immediate setup.
